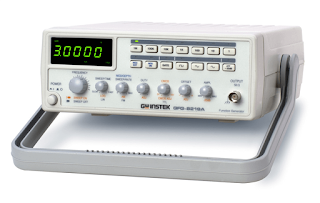

GW Instek GFG-8219A Analog Function Generator
Features
- Frequency Range: 0.3Hz ~ 3MHz
- Waveforms: Sine, Triangle, Square,Ramp, TTL and CMOS Output
- External Voltage Controlled Frequency (VCF) Function
- Two-Steps (-20dBx2) and Variable Attenuator
- Built-In 6 Digits Counter with INT/EXT Function up to 150MHz
- INT/EXT AM/FM Modulation
- GCV Output for Synchronization
The GFG-8200A product family offers a complete solution in generating signals at the 3MHz/5MHz ranges. All models are embedded with standard functions such as TTL/CMOS/Ramp output, External Voltage Controlled Frequency (VCF), and built-in 6-digit counter (except for GFG-8215A).
Further versatility of Logarithmic and Linear sweep is added into GFG-8255A/8219A/8217A, while GCV output feature and AM/FM modulation are available in GFG-8255A/8219A. All these integrated functions and user-friendly operations of the GFG-8200A series are made to accommodate the applications in audio response testing, vibration testing, servo system evaluation, ultra sound application, etc.
| SELECTION GUIDE | ||||||
MODEL
|
GFG-8255A
|
GFG-8250A
|
GFG-8219A
|
GFG-8217A
|
GFG-8216A
|
GFG-8215A
|
| DISPLAY |
6 Digits LED Display
|
-
|
||||
| WAVEFORM |
Sine , Square , Triangle
|
|||||
| FREQUENCY RANGE |
5MHz
|
5MHz
|
3MHz
|
3MHz
|
3MHz
|
3MHz
|
| LIN/LOG SWEEP |
V
|
V
|
V
|
|||
| AM/FM MODULATION |
V
|
V
|
||||
| FREQUENCY COUNTER |
V
|
V
|
V
|
V
|
V
|
|
| VOLTAGE CONTROL FREQUENCY |
V
|
V
|
V
|
V
|
V
|
V
|
| GCV OUTPUT |
V
|
V
|
||||
| TTL/CMOS OUTPUT |
V
|
V
|
V
|
V
|
V
|
V
|
Specification :
GFG-8215A/8216A/8217A/8219A
|
GFG-8250A / 8255A
|
|
| MAIN | ||
| Frequency Range |
0.3Hz ~ 3MHz (7 Range)
|
0.5Hz ~ 5MHz (7 Range)
|
| Amplitude | >10Vpp (into 50Ω load) | |
| Impedance | 50Ω±10% | |
| Attenuator | -20dB±1dBx2 | |
| DC Offset | <-5V ~ >5V (into 50Ω load) | |
| Duty Control | 80% ~ 20%, maximum 1MHz (continuously adjustable) | |
| Display | 6 digits LED display *GFG-8215A does not have a display |
|
| Range Accuracy | ±5%+1Hz (at 3 positions) *only for GFG-8215A | |
| SINE WAVE | ||
| Distortion |
< 1%, 0.3Hz ~ 200kHz
|
< 1%, 0.5Hz ~ 100kHz
|
| THD (Total Harmonic Distortion) |
< 35dB, below fundamental in all ranges, from Max to 1/10 level
|
< 30dB, below fundamental in all ranges, from Max to 1/10 level
|
| Flatness |
< 0.3dB, 0.3Hz ~ 300kHz
< 0.5dB, 300kHz ~ 3MHz |
< 0.3dB, below 500kHz
< 1dB, below 5MHz |
| TRIANGLE WAVE | ||
| Linear |
> 98%, 0.3Hz ~ 100kHz
> 95%, 100kHz ~ 3MHz |
> 98%, 0.5Hz ~ 100kHz
> 95%, 100kHz ~ 5MHz |
| SQUARE WAVE | ||
| Symmetry |
±2%, 0.3Hz ~ 100kHz
|
±2%, 1Hz ~ 100kHz
|
| Rise or Fall Time |
< 100nS at maximum output (into 50Ω load)
|
< 50nS at maximum output (into 50Ω load)
|
| CMOS OUTPUT | ||
| Level | 4Vpp±1Vpp ~ 14.5Vpp±0.5Vpp adjustable | |
| Rise or Fall Time | < 120nS | |
| TTL OUTPUT | ||
| Level | > 3Vpp | |
| Fan Out | 20 TTL load | |
| Rise or Fall Time | < 25nS | |
| VCF (Voltage Controlled Frequency) | ||
| Input Voltage | 0V ~ 10V±1V (100 : 1) | |
| Input Impedance | 10kΩ±10% | |
| GCV (Generator Controlled Voltage) (GFG-8219A/8255A) | ||
| Output Voltage | Sets the voltage between 0V ~ 2V according to the frequency | |
| SWEEP OPERATION (GFG-8217A/8219A/8255A) | ||
| Sweep Selection | Switch selector | |
| Sweep Rate | Maximum 100 : 1, adjustable | |
| Sweep Time | 0.5sec ~ 30sec, adjustable | |
| Sweep Mode | Lin/Log switch selector | |
| AMPLITUDE MODULATION (GFG-8219A/8255A) | ||
| Depth | 0 ~ 100% | |
| MOD. Frequency | 400Hz (INT), DC ~ 1MHz(EXT) | |
| Carrier BW |
100Hz ~ 3MHz (-3dB)
|
100Hz ~ 5MHz (-3dB)
|
| EXT Sensitivity | < 10Vpp for 100% modulation | |
| FREQUENCY MODULATION (GFG-8219A/8255A) | ||
| Deviation | 0 ~ ±5% | |
| MOD. Frequency | 400Hz (INT), DC ~ 20kHz(EXT) | |
| EXT. Sensitivity | < 10Vpp for 10% modulation | |
| FREQUENCY COUNTER (GFG-8216A/8217A/8219A/8250A/8255A) | ||
| INT/EXT | Switch selector | |
| Range |
0.3Hz ~ 3MHz (5Hz ~ 150MHz EXT)
|
0.5Hz ~ 5MHz (5Hz ~ 150MHz EXT)
|
| Accuracy | Time base accuracy±1 count | |
| Time Base | ±20ppm(23° C ± 5° C)after 30 minutes warm up | |
| Resolution | 100nHz for 1Hz, 1Hz for 100MHz | |
| Input Impedance | 1MΩ // 150pF | |
| Sensitivity | < 35mVrms (5Hz ~ 100MHz) < 45mVrms (100MHz ~ 150MHz) |
|
| POWER SOURCE | ||
| AC115V/230V±15%, 50 / 60Hz | ||
| DIMENSIONS & WEIGHT | ||
251(W) x 91(H) x 291(D)mm
Approx. 2.0 kg(GFG-8215A) Approx. 2.1 kg(GFG-8216A) Approx. 2.15kg(GFG-8217A) Approx. 2.2 kg(GFG-8219A) |
251(W) x 91(H) x 291(D)mm
Approx. 2.3 kg (GFG-8250A) Approx. 2.4 kg (GFG-8255A) |
|
Accessories :
User manual x 1
Power cord x 1
Test lead GTL-101 x 2
Test lead GTL-101 x 1 (GFG-8215A)
