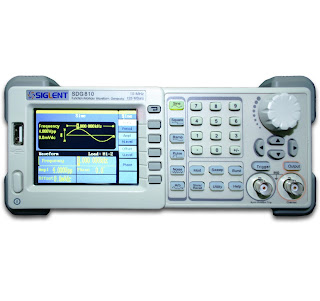

Siglent SDG810
https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEigKXUQ4VhjQ0JcWtF3oysnOVR_0HQyp2IqhK-ndOS15_-ITwI9PzVF2285ISpSlM39mTBkCw5iUYzW928DZRb0Tu2db8ksF34kBvQILfeCIxltxH2cUpIrpe2OjEevyifYOJq2blnsdZc/s72-c/siglent-SDG810.jpg
Siglent SDG810 Arbitrary Function Generator (10MHz, 125MSa/A, 16Kpts)
- 10MHz model
- Generates different waveform types
- Complete set of modulation options
Siglent SDG810 Arbitrary Function Generator, 10MHz, 125MSa/A, 16Kpts Details
The Siglent SDG810 is a bench-based signal generation tool that is ideal for research, training and product design.
Capable of generating a maximum output frequency of 10MHz through a single output channel, this function generator uses sampling rate of 125MSa/s, 16kpts arbitrary waveform length and can produce sine, square, ramp, Gaussian noise and 46 built-in arbitrary waveforms (including DC) with AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep and Burst modulation.
Generated waveforms and other functions are shown directly on a 3.5" full colour screen. A large selection of adjustable functions are next to the screen, making it easy to adjust the waveform output to the style you need.
Siglent SDG810 Arbitrary Function Generator Key Features
- DDS technology
- Single-channel output
- 125MSa/s sample rate
- 14 bit vertical resolution
- Sine, square, ramp, gaussian noise and 46 built-in arbitrary waveforms
- Complete set of modulation functions: AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep and Burst
- Abundant input/output: waveform output
- Synchronous signal output
- External trigger input
- USB device and USB host interfaces
- 3.5" full colour screen
- Siglent SDG810 Arbitrary Function Generator
- Quick Start Guide
- Certificate
- Software
- Power Cord
- USB Cable
Frequency Specifications
|
|
Waveforms
|
Sine, Square, Ramp, Pulse, Noise, Arbitrary
|
Sine
|
1μHz - 10MHz
|
Square
|
1μHz - 10MHz
|
Pulse
|
500μHz - 5MHz
|
Ramp/Triangular
|
1μHz - 300kHz
|
Gaussian White Noise
|
>10MHz (-3dB)
|
Arbitrary
|
1μHz - 5MHz
|
Resolution
|
1μHz
|
Accuracy
|
Within 90 days ±50ppm within 1 year ±100ppm
|
Sine Wave
|
|
Harmonic Distortion
|
DC - 1MHz <-60dBc
1MHz - 10MHz <-55dBc 10MHz - 30MHz <-50dBC |
Total Harmonic Waveform
Distortion |
DC - 20kHz, 1Vpp<0.2%
|
Spurious Signal (Non-Harmonic)
|
DC - 1MHz <-70dBc
1MHz - 10MHz <-60dBc 10MHz - 30MHz <-55dBc |
Phase Noise
|
10kHz offset, -108dBc/Hz (typical value)
|
Square Wave
|
|
Rise/Fall Time
|
<24ns (10%-90%)
|
Overshoot
|
<5% (typical, 1kHz, 1Vpp)
|
Duty Cycle
|
20% - 80%
|
Asymmetric (50% Duty Cycle)
|
1% of period+20ns (typical, 1kHz, 1Vpp)
|
Jitter
|
500ps + 0.001% of period
|
Ramp/Triangle Wave
|
|
Linearity
|
<0.1% of Vpp (typical 1kHz, 1Vpp, 100% symmetric
|
Symmetery
|
0 - 100%
|
Pulse Wave
|
|
Pulse Width
|
16ns, Min. 1ns resolution
|
Rise/Fall time (10% - 90% typical)
|
20ns - 1.6ks
|
Duty Cycle
|
0.1% resolution
|
Overshoot
|
<5%
|
Jitter (pk-pk)
|
500ps + 0.001% of period
|
Arbitrary Wave
|
|
Waveform Length
|
16k points
|
Vertical Resolution
|
14bits
|
Sample Rate
|
125MSa/s
|
Min. Rise/Fall Time
|
8ns (typical)
|
Jitter (pk-pk)
|
8ns (typical)
|
Storage in non-volatile
RAM memory (10 in total) |
10 waveforms
|
Output Specification
|
|
Amplitude
|
2mVpp - 10Vpp (50Ω≤10MHz)\
2mVpp - 5Vpp (50Ω≤10MHz)
|
Vertical Accuracy (100KHz Sine)
|
±(1mVpp + 0.3dB of setting value)
|
Amplitude Flatness (Compared
to 100KHz Sine, 5Vpp |
±0.3dB
|
Impedance
|
50Ω
|
Protection
|
Short-Circuit Protection
|
DC Offset
|
|
Range (DC)
|
±5V (50Ω)
±10V (High-Z) |
Offset Accuracy
|
± (setting offset value | 1% + 3mV)
|
AM Modulation
|
|
Carrier
|
Sine, Square, Ramp, Arbitrary (except DC)
|
Modulation Waveform
|
Sine, Square, Ramp, Noise, Arbitrary (2mHz - 20kHz)
|
Modulation Depth
|
0 - 120%
|
DSB-AM Modulation
|
|
Carrier
|
Sine, Square, Ramp, Arbitrary (except DC)
|
Modulation Waveform
|
Sine, Square, Ramp, Noise, Arbitrary (2mHz - 20kHz)
|
Modulation Depth
|
0 to 120%
|
FM Modulation
|
|
Carrier
|
Sine, Square, Ramp, Arbitrary (except DC)
|
Modulation Waveform
|
Sine, Square, Ramp, Noise, Arbitrary (2mHz - 20kHz)
|
Frequency Deviation
|
0 - 0.5*bandwidth 1mHz resolution
|
PM Modulation
|
|
Carrier
|
Sine, Square, Ramp, Arbitrary (except DC)
|
Modulation Waveform
|
Sine, Square, Ramp, Noise, Arbitrary (2mHz - 20kHz)
|
Phase Deviation
|
0-360°, 0.1 resolution
|
FSK Modulation
|
|
Carrier
|
Sine, Sqaure, Ramp, Arbitrary (except DC)
|
Modulation Waveform
|
50% duty cycle square waveform (2mHz - 50kHz)
|
ASK Modulation
|
|
Carrier
|
Sine, Square, Ramp, Arbitrary (except DC)
|
Modulation Waveform
|
50% duty cycle square waveform (2mHz - 50kHz)
|
PWM Modulation
|
|
Frequency
|
500μHz - 20kHz
|
Modulation Waveform
|
Sine, Square, Ramp, Arbitrary (except DC)
|
Sweep
|
|
Carrier
|
Sine, Square, Ramp, Arbitrary (except DC)
|
Type
|
Linear/Logarithmic
|
Direction
|
Up/Down
|
Sweep Time
|
1ms - 500s
|
Trigger Source
|
Manual, external, internal
|
Burst
|
|
Waveform
|
Sine, Square, Ramp, Pulse, Arbitrary (except DC)
|
Type
|
Count (1-50000 periods), infinite, Gated
|
Start/Stop Phrase
|
0 - 360°
|
Internal Period
|
1μs - 500s
|
Gated Source
|
External Trigger
|
Trigger Source
|
Manual, External or Internal
|
Trigger Input
|
|
Input Level
|
TTL Compatible
|
Slope
|
Up or down
|
Pulse Width
|
>100ns
|
Input Impedance
|
<5kΩ, DC coupling
|
SYNC Output
|
|
Voltage Level
|
TTL Compatible
|
Pulse Widht
|
<50ns
|
Output Impedance
|
50Ω (typical)
|
Max Frequency
|
2MHz
|
General Specs
|
|
Display
|
|
Display Type
|
3.5inch TFT-LCD
|
Resolution
|
320 x RGB x 240
|
Colour Depth
|
24 bit
|
Contrast Ratio
|
350:1 (typical)
|
Luminance
|
300cd/m² (typical)
|
Power
|
|
Voltage
|
100-240V AC RMS, 45-66Hz, CATII
100-127 VAC RMS, 45-440Hz, CATII |
Consumption
|
<30W
|
Fuse
|
1.25A, 250V
|
Environment
|
|
Temperature
|
Operation: 0-40°C
Storage: -20 - 60°C |
Humidity Range
|
Below +35°C: ≤90% relative humidity
+35°C - +40°C: ≤60% relative humidity |
Altitude
|
Operation: below 3000m
Storage: below 15000m |
Others
|
|
Dimensions
|
Width: 229mm
Height: 105mm Depth: 281mm |
Weight
|
Net Weight: 2.6Kg
Gross Weight: 3.4Kg |
IP Protection
|
IP2X
|
Calibration Cycle
|
1 year
|
